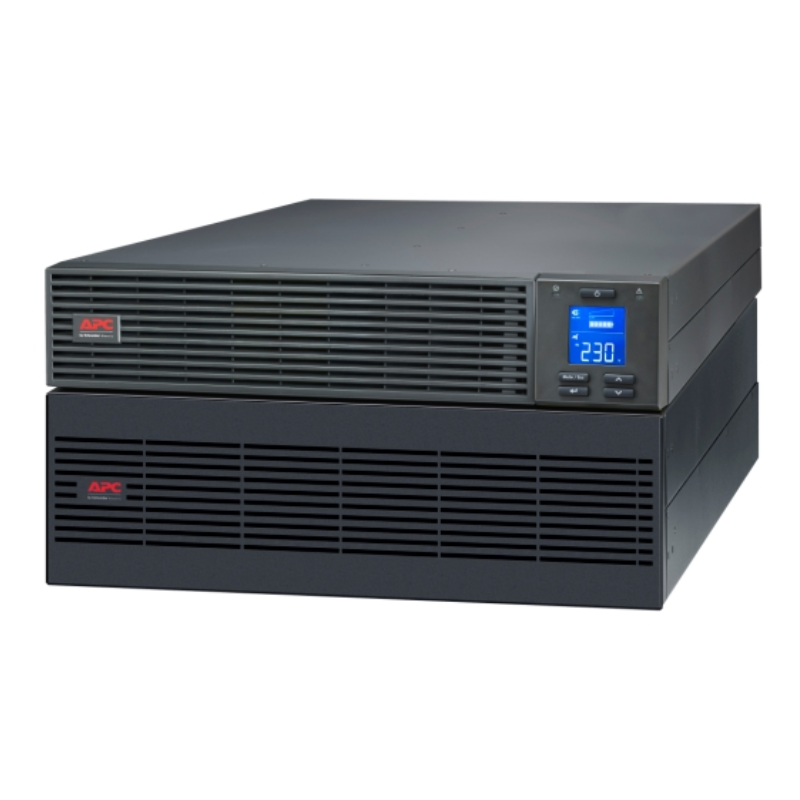

Brand: APC Ups
Model: SRV10KRILRK
Color: Black
Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
Rack Height: 5U
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Output Connections: Hard wire 3-wire (1P + N + E) 1
Battery type: Lead-acid battery
Typical recharge time: 5 hour(s)
Nominal Battery Voltage: 240 V
Expected Battery Life (years): 3-5
Battery Charge Power (Watts): 1170 Watts
Input frequency: 40 - 70 Hz Auto-sensing
Input voltage range for main operations: 110 - 300 Half load, 176 - 300 Full load
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
UPS type: Double conversion online
Waveform type: Sine wave
Bypass: Internal bypass (automatic and manual)
Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Control panel: Multifunction LCD status and control console
Protection Class: IP20
Surge energy rating: 600Joules
Mounting Mode: Rack-mounted
Mounting Position: Horizontal
Maximum Height: 22 cm
Maximum Width: 43.8 cm
Maximum Depth: 61.5 cm
Net Weight: 78 kg
